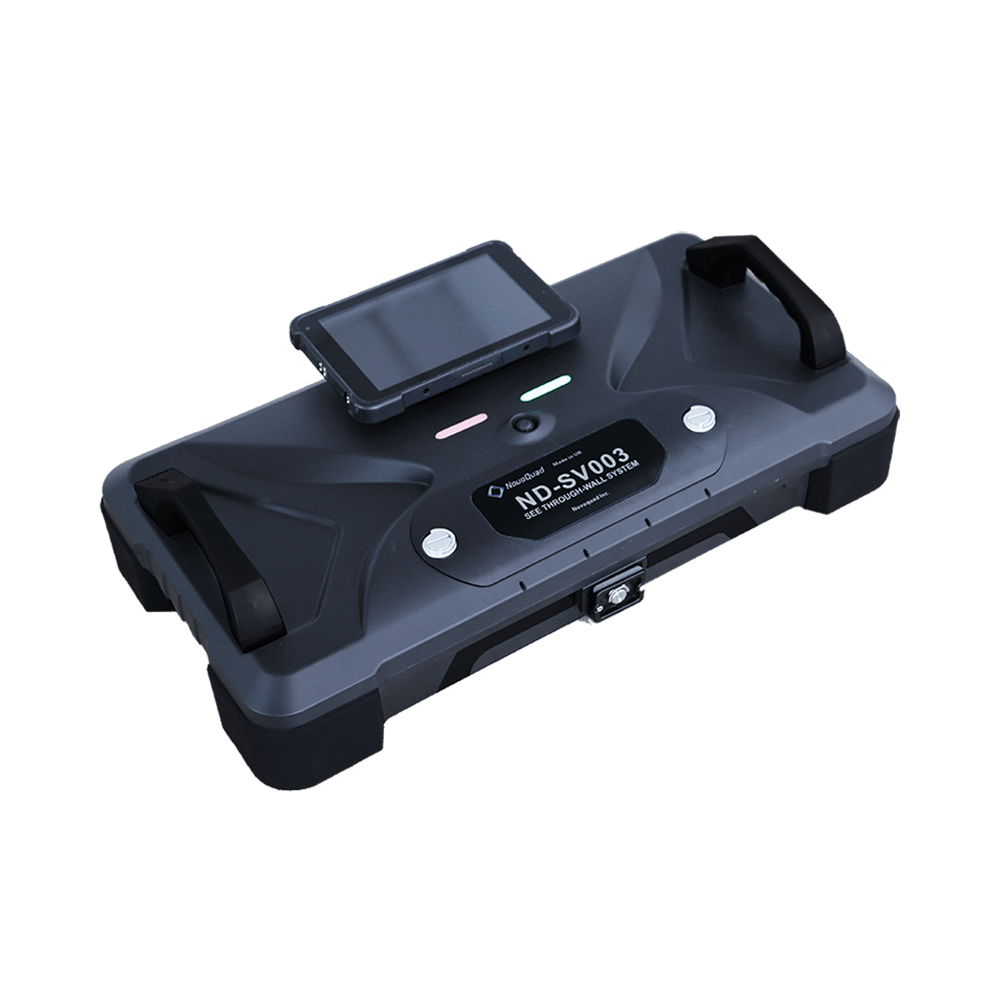

ND-SV003 See Through Wall Radar System

Overview

ND-SV003 See Through Wall Radar System is specifically designed for locating live people behind walls or optically nontransparent obstacles during protection operations, natural disaster rescue missions and avalanche recovery search. Owing to its outstanding features of long range, high resolution and strong penetrability, the system provides a powerful solution for many government agencies, e.g., fire and police department.

The ND-SV003 Through Wall Radar / Through Wall Imaging Radar stands at the forefront of surveillance technology, offering unparalleled capabilities for security and rescue operations. Adopting precise UWB (Ultra-Wideband Pulse) technology, this cutting-edge through wall radar device provides real-time data, enabling operators to detect and track the movement of live targets through solid walls with exceptional clarity. With this through wall imaging radar, operator gains the strategic advantage of advanced penetration technology, ensuring that critical mission decisions are informed by reliable and accurate information, even though the most challenging obstacles.

Features

  • Strong penetration: It is able to penetrate a 40cm brick & concrete solid wall to detect the human target within 30m
  • Real time: It is able to detect and display multiple moving targets in real time
  • High resolution: ±0.3m in distance, ±0.3m in orientation (depending on situations)
  • Multiple targets two dimension positioning: It is able to detect multiple moving and static targets with a clear two dimensional display
  • Strong environmental suitability: It is able to work all time & in all-weather conditions. The performance of the system is not impacted by rain, haze, snow, dust, smoke or darkness
  • Strong remote expert support: Wi-Fi PAD included for remote expert monitoring and analysis

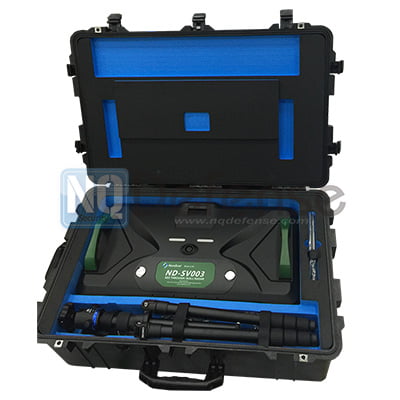

Complete Set

  • Host
  • Terminal PAD
  • Lithium Battery
  • Tripod
  • Tripod PTZ
  • Charger
  • Adapter
  • Power Cable
  • User Manual

Specifications

Penetrable materialNon-metallic materials, such as concrete, soil, rock, mixed brick, floor, wood and materials with low water content
Through-wall penetrabilityPenetrate 40cm brick & concrete solid wall
Detection distanceMoving target30m
Static target25m
Remote control distance≥150m in open space
Resolution in distance±0.3m
Resolution in orientation±0.3m
Detecting modeSimultaneous detection of multiple moving and static targets, with two dimension positioning
Working hour≥8 hours
Protection gradeIP65

See Through Wall Radar System

• Strong penetration
It is able to penetrate a 40cm brick & concrete solid wall to detect the human target within 30m

• Real time
It is able to detect and display multiple moving targets in real time

• High resolution
±0.3m in distance, ±0.3m in orientation (depending on situations)

• Multiple targets two dimension positioning
It is able to detect multiple moving and static targets with a clear two dimensional display

• Strong environmental suitability
It is able to work any time & in all-weather conditions. The performance of the system is not impacted by rain, haze, snow, dust, smoke or darkness

• Strong remote expert support
Wi-Fi PAD included for remote expert monitoring and analysis

• Host x 1
• Terminal PAD x 1
• Lithium Battery x 2
• Tripod x 1
• Tripod PTZ x 1
• Charger x 1
• Adapter x 1
• Power Cable x 1
• User Manual x 1
