ND-BU002 High-End Anti-Drone System
Overview

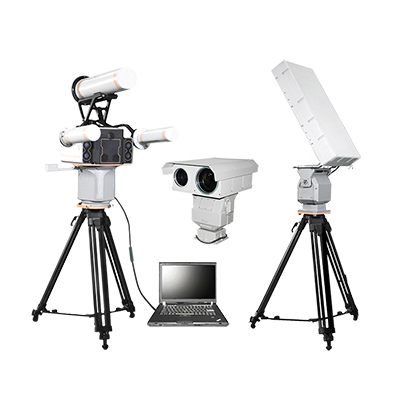

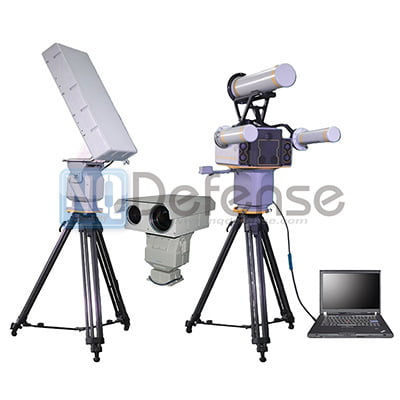

ND-BU002 High-End Anti-Drone System is an upgraded version based on ND-BU001 for drone defense and critical area protection. Adopting advanced 3D active phased-array radar, the system has extended detection range dramatically. The system mainly consists of Detecting Unit, Jamming Unit and Camera Unit.
• The Detecting Unit, which employs the advanced 3D active phased-array radar, can detect and track long-distance drones, in both horizontal angle and vertical angle.
• Guided by the accurate drone position information, the Jamming Unit with tall antenna and low power jammer will interfere with the remote control signals and navigation signals of the drone and force it to land or return.
• The Camera Unit can efficiently record the tracks of the detected drone for further analysis, and also assist the Detecting Unit for more accurate monitoring.
Features
Main Features of Detecting Unit
• Advanced 3D active phased-array radar
• Low false alarm rate and excellent ability in clutter suppression
• Multiple target capability: able to search more than 200 targets simultaneously
• Full automatic searching and tracking, supporting all day (24h) working
• Detection distance: ≥5km (depending on circumstances and drone type)
• User-friendly interface
Main Features of Jamming Unit
• Precise jamming without violence
• 9 frequency bands of jamming signals (Frequency bands and output power can be customized)
• Support automatic/manual mode switching
• Remote control frequency jamming: coverage of all available civil drones
• Directional high-gain antennas mounted on Pan-Tilt platform can effectively track drone and transmit jamming signal in the direction of the drone
Complete Set
• Detecting Unit
• Jamming Unit
• Camera Unit
• Control Software
• Power Cable
• User Manual
Specifications
| Detecting Unit | ||
| Radar mode | Linear frequency modulation pulse | |
| Working frequency | Ku band | |
| Scanning method | 360° horizontally mechanical scanning, and vertically wide beam phased scanning | |
| Detection distance | ≥5km (RCS=0.01 m2) | |
| ≥10km (RCS=0.2 m2) | ||
| Blind range | ≤200m | |
| Detection angle | Azimuth angle | 0°~360° scanning |
| Elevation angle | 0°~40° | |
| Measuring dimensionality | Distance/azimuth/elevation angle/speed | |
| Tracking | TWS/continuously tracking | |
| Weight of radar host | ≤26kg (tripod excluded) | |
| Jamming Unit | ||||
| Output band | Frequency band | Channel output power | Total output power | |
| Output power | 9 Bands | 430-440MHz | 50W | 266W |
| 459-461MHz | 50W | |||
| 868-870MHz | 25W | |||
| 902-928MHz | 25W | |||
| GPS L1:1575.42±5MHz | 25W | |||
| GPS L2:1227.6±5MHz | 25W | |||
| GPS L3:1381.05±5MHz | 25W | |||
| 2400-2490MHz | 25W | |||
| 5725-5850MHz | 16W | |||
| Jamming distance | 5km (depending on circumstances) | |||
| Power supply | AC220V/50Hz | |||
| Power consumption | 800W | |||
| Physical and environment | Host weight | ≤25Kg | ||
| Protection grade | IP66 | |||
| Camera Unit | |||
| Optical camera | Resolution | 2MP/1080p @ 60fps (1920 x 1080) | |
| Image sensor | 1/2.8″ 2.1 Megapixel CMOS | ||
| Lens | Focal length | 15.4-2075mm 135X | |
| Angle of view | 19.3°~0.15° horizontal | ||
| Optical fog filter (NIR) | Yes | ||
| IP protocol | ONVIF, HTTP, RTSP, RTP, TCP, UDP | ||
| EIS | Electronic image stabilization (on/off) | ||
| Thermal camera | Image sensor | X-Hot 10μm 1280 x 1024 MWIR Sensor (1280 x 720 IP output) | |
| Lens (motorized focus) | 115-1200mm (10.5X) ƒ4.0, Autofocus Ge zoom lens | ||
| Field of view | 6.4° ~ 0.61° HFOV (±3%) | ||
| Image enhancement | Digital image contrast enhancement (dice) and digital zoom | ||
| Cooler lifetime | 20,000+ hour rated Rotary Stirling cycle cooler | ||
| Pan and tilt | Pan angle & speed | Endless 360° 0.001°/s ~ 110°/s | |
| Tilt angle & speed | +65° to -65°, 0.001 ~ 70°/s | ||
| Accuracy | 0.005° | ||
| Environmental | Operating temperature | -50°C ~ +65°C | |
| Protection grade | MIL-STD-810F, EMI MIL-STD-461E, IP66/67 | ||
Anti-Drone System
Main Features of Detecting Unit
• Advanced 3D active phased-array radar
• Low false alarm rate and excellent ability in clutter suppression
• Multiple target capability: able to search more than 200 targets simultaneously
• Full-automatic searching and tracking, supporting all day (24h) working
• Detection distance: ≥5km (depending on circumstances and drone type)
• User-friendly interface
Main Features of Jamming Unit
• Precise jamming without violence
• 9 frequency bands of jamming signals (Frequency bands and output power can be customized)
• Support automatic/manual models switching
• Remote control frequency jamming: coverage of all available civil drones
• Directional high-gain antennas mounted on Pan-Tilt platform can effectively track drone and transmit jamming signal in the direction of the drone
| • Detecting Unit | x 1 |
| • Jamming Unit | x 1 |
| • Camera Unit | x 1 |
| • Control Software | x 1 |
| • Power Cable | x 1 |
| • User Manual | x 1 |
