ND-BU001 Standard Anti-Drone System

Overview

ND-BU001 Standard Anti-Drone System (Drone Detection System) is designed against consumer-grade small rotor drones, merging long-range detection, jamming and record tracking functions into one system, for protection of key areas and response to threats from small rotor drones, e.g., illegal drone invasion, terrorist attack, and drug trafficking.

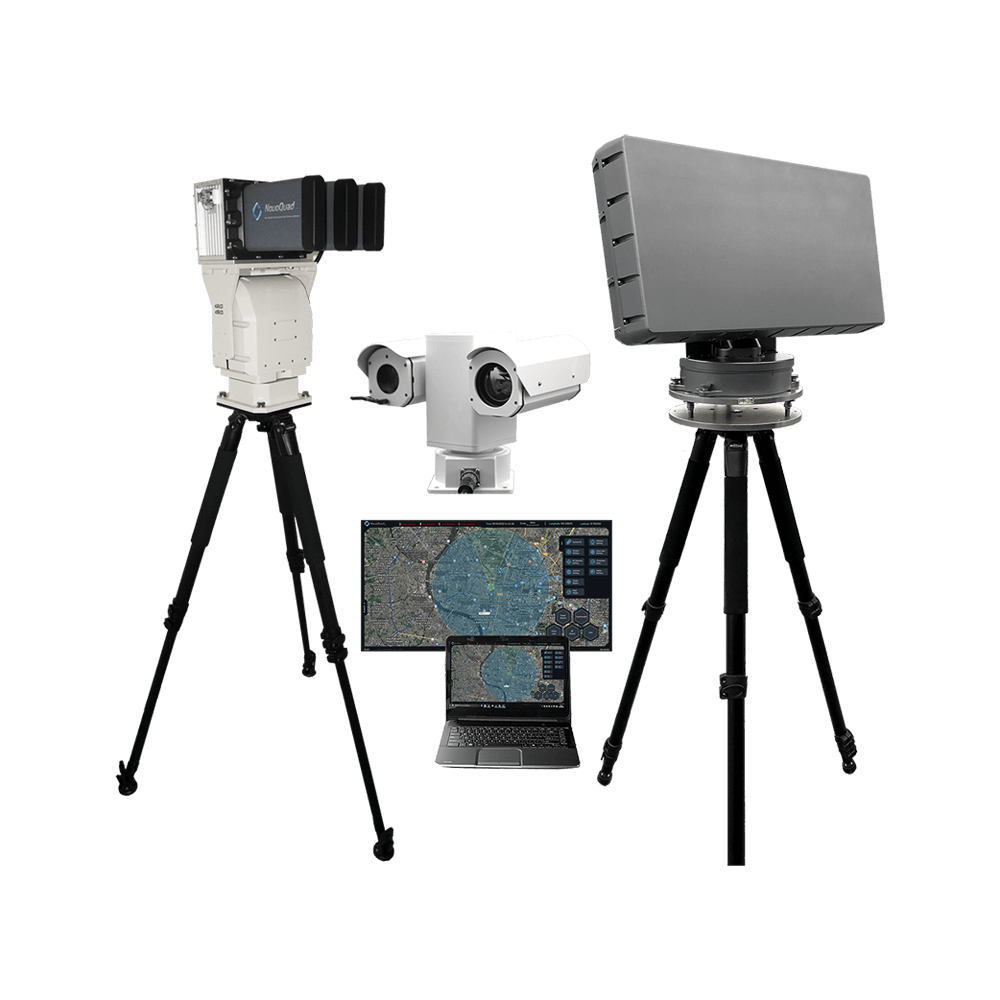

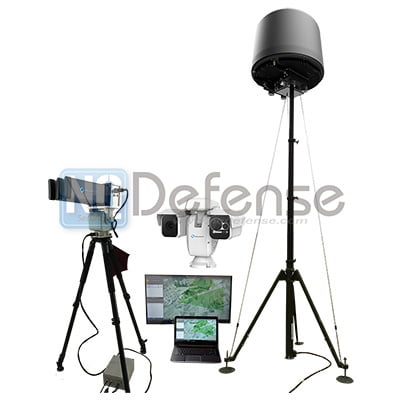

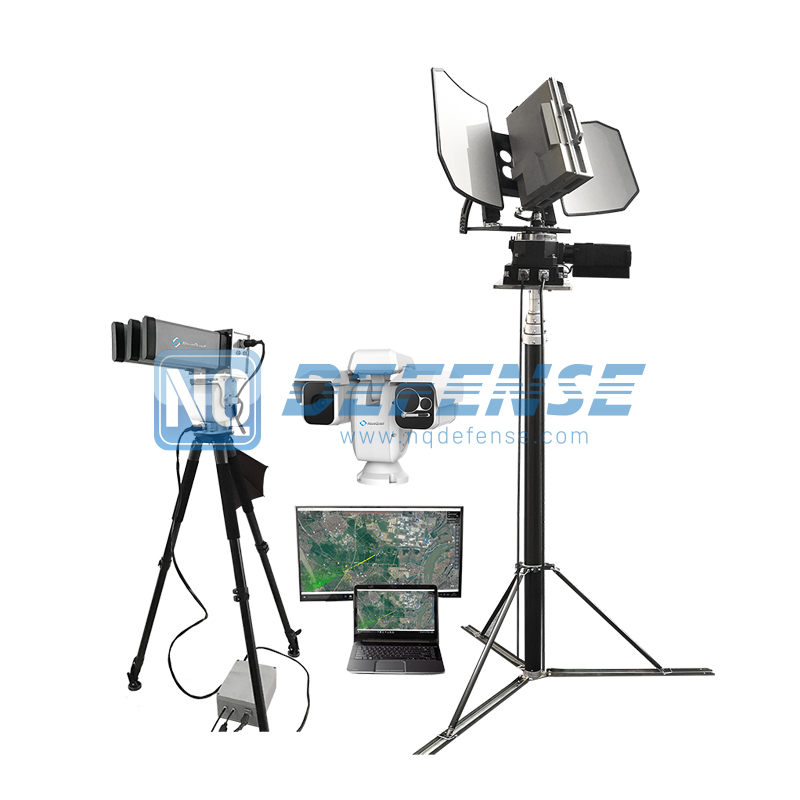

The system mainly consists of Detecting Unit (Drone Detection Radar), Jamming Unit and Camera Unit. Detecting Unit is for detecting and tracking long-distance drones and leads Jamming Unit to interfere with the remote control circuits and navigation signals of drones and force them to land or return. The Camera Unit can efficiently record the tracks of the detected drone for further analysis and assist the Drone Detection Radar for more accurate and effective monitoring.

This Drone Detection System employes the 3D active phased-array Drone Detection Radar to achieve powerful and efficient drone detection and tracking functions. Its superiority and reliability of drone detection and tracking functions mainly reflects in detection distance, coverage, accuracy, and the number of targets detected simultaneously. The drone detection and tracking performance of this Drone Detection System has been proved in practical applications, such as protecting low-altitude areas for large events and meetings and daily patrol for key infrastructures, airports and bases.

Features

Main Features of Detecting Unit:

• 3D active phased-array radar
• Low false alarm rate and excellent ability in clutter suppression
• Multiple target capability: able to search more than 200 targets simultaneously
• Fully automatic searching and tracking, supporting all day (24h) working
• Detection distance: 3.0km (depending on circumstances and drone type)
• User-friendly interface

Main Features of Jamming Unit:

• Precise jamming without violence
• 6 frequency bands of jamming signals (frequency bands and output power can be customized)
• Support automatic/manual models switching
• Remote control frequency jamming: coverage of all available civil drones
• Directional high-gain antennas mounted on Pan-Tilt platform can effectively track drone and transmit jamming signal in the direction of the drone
• Frequency jamming can be done automatically upon drone detection or supervisor assistance

Complete Set

• Detecting Unit
• Jamming Unit
• Camera Unit
• Control Software
• Power Cable
• User Manual

Specifications

Detecting Unit
Working frequencyKu band (16.01GHz-17.02GHz)
Detection distance3km (DJI Phantom 4)
Minimum target speed1m/s
Blind range≤200m
Detection angleAzimuth angle0°-360°
Elevation angle0°-40°
Number of targets≥200
Power consumption≤160W
Weight of radar host≤25kg (tripod excluded)
Operating temperature−40°C~+60°C
Protection gradeIP65
Jamming Unit
Output bandFrequency bandChannel output powerTotal output power
Output power6 Bands410-440MHz50W300W
840-930MHz50W
1440-1480MHz50W
GPS L150W
2.40-2.50GHz50W
5.70-5.90GHz50W
Jamming distance3km
Power supply220V, AC power
Power consumption600W
Physical and environmentWeight18kg
Protection gradeIP65
Camera Unit
Visible cameraTracking range2km (Drone size: 0.3 x 0.3m)
Focal length6.5-312mm
Image sensor1/2.8″ 2.13MP CMOS
Resolution1080P (1920 x 1080)
Thermal cameraTracking range1km (Drone size: 0.3 x 0.3m)
Focal length75mm
Resolution640 x 512
Spectrum range8-14μm
Sensitivity (NETD)≤40mK
Pan-tiltRotation rangeHorizontal: 360° continuous infinite position rotation; Vertical: -90°~+90°
Maximum speedHorizontal: 60°/s; Vertical: 60°/s
Additional systemDimension≤350 x 250 x 190mm
Weight7.5kg
Operation temperature and humidityTemperature: -40℃~+60℃; Humidity: <90%RH
Protection gradeIP66
