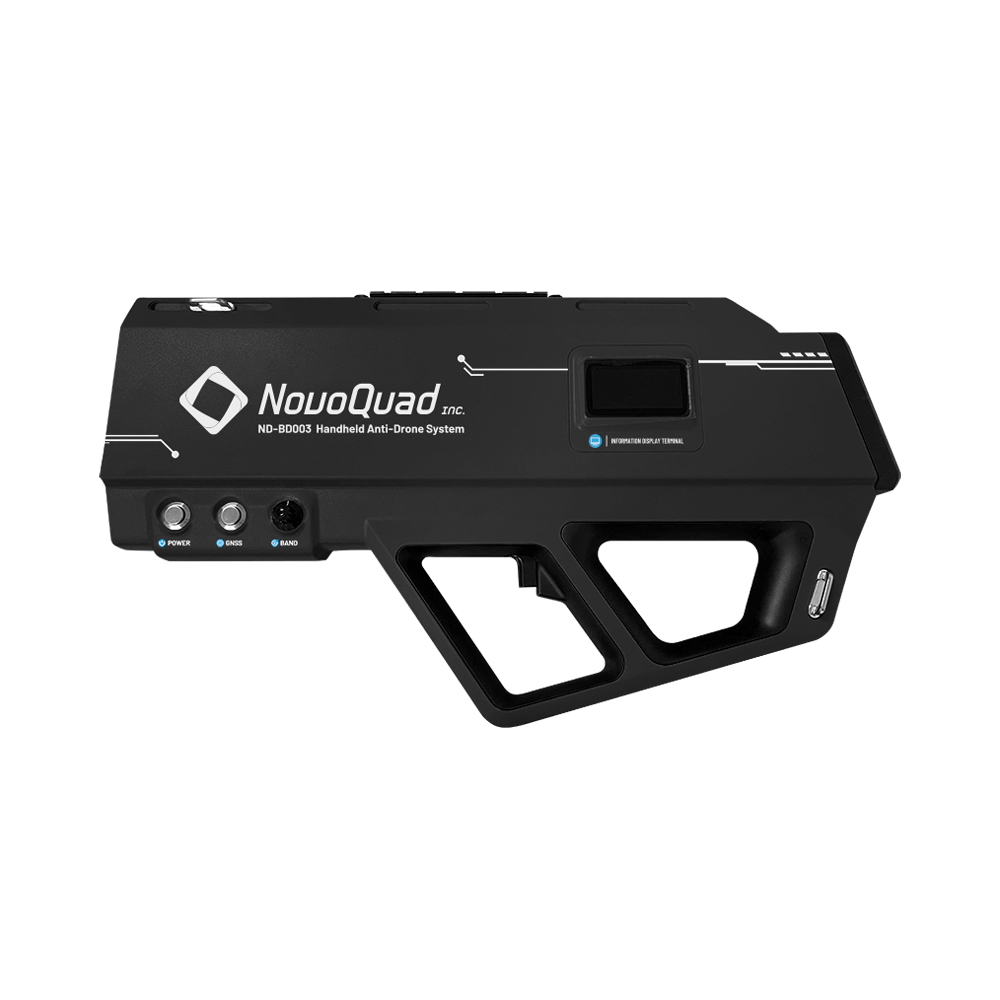

ND-BD003 Handheld Anti-Drone System
Overview
ND-BD003 Handheld Anti-Drone System (Anti Drone Jammer / Anti Drone Gun / Anti Drone Rifle / C-UAS Gun) integrates detection, countermeasure, display, control and power supply all in one. Traditional anti drone jammers / anti drone guns have to rely on external detection devices or human visual searching to detect drones then jam drones, these external anti drone devices require pre-operation assembly, and human visual searching causes a large workload and easily misses targets. However, with highly integrated detector, this anti drone jammer / handheld anti drone system overcomes these shortcomings and significantly improves the operational efficiency, considering as an evolving anti drone gun / anti drone rifle / C-UAS gun.
With small size, light weight and good mobility, this handheld anti drone system / anti drone jammer is suitable for low-altitude protection tasks for important meeting, large event and daily patrol in fixed places to detect and jam a drone. This anti-drone gun / rifle offers quick response for cooperative deployment with other stationary anti drone systems and anti drone devices.
Features
• Programmable, interference frequency and bandwidth could be customized
• Target direction finding and warning
• Passive detection and directional control
• APP control platform
The system supports type-c interface and can be connected to mobile terminal (Android) via USB cable.
• Removable battery
• Portable and easy to use
• Safe to operators and green to environment
Complete Set
• Jammer Host
• Terminal Mobile (Optional)
• Battery
• Power Cable
• Protection Case
• User Manual
Specifications
| Detection frequency band | 2.4-2.48GHz, 5.725-5.8GHz |
| Jamming frequency band | The jamming function covers a wide frequency range, mainly covering 0.4-2GHz, 1.52-1.62GHz, 2.4-2.48GHz, 5.725-5.850GHz, of which 0.4-2GHz is software defined frequency band. |
| Jamming output power (80W) | 0.4-2GHz, 20W |
| GPS L1, 20W | |
| 2.4-2.48GHz, 20W | |
| 5.725-5.850GHz, 20W | |
| Effective detection distance | 1km |
| Effective interference distance | 1km (0.1W transmitting power of target drone) |
| Interference to signal ratio | <10:1 |
| Coverage area | Azimuth: ±20°; Elevation: ±20° |
| Working hour | Continuous working time: >1h; Standby time: >6h |
| Dimension | 500mm x 300mm x 100mm |
| Weight | ≤3.3kg (battery included) |
Anti-Drone System
• Programmable, interference frequency and bandwidth could be customized
• Target direction finding and warning
• Passive detection and directional control
• APP control platform
The system supports type-c interface and can be connected to mobile terminal (Android) via USB cable.
• Removable battery
• Portable and easy to use
• Safe to operators and green to environment
| • Jammer Host | × 1 |
| • Terminal Mobile (Optional) | × 1 |
| • Battery | × 1 |
| • Power Cable | × 1 |
| • Protection Case | × 1 |
| • User Manual | × 1 |
FAQs
Q1: How does this handheld anti drone system detect drones?
A1: This drone signal jammer has a built-in RF detector, which could detect the RF signals sent out by drones. The built-in RF detector is omnidirectional and runs automatically.
Q2: How does this anti drone gun / anti drone rifle counter drones / jam a drone?
A2: This drone gun could force the drone to fly back or land. If the drone lost the communication signal, it will fly back to the take-off point; if the GPS signal is jammed by this drone signal jammer, the drone will land.
Q3: Could this anti drone device be operated at night?
A3: Yes. This anti drone device will raise visual and audible alarm when a drone is detected. User could turn off the audible alarm to stay completely stealthy during the task.
Q4: What is the user-defined jamming frequency band for?
A4: User-defined frequency band (0.4-2GHz) is reserved for different application scenarios. It could be used to counter or jam drones using bands other than GPS L1, 2.4GHz or 5.8GHz.
Q5: What are the main functions of this c-uas gun’s APP control platform?
A5: User could set system parameters and user-defined frequency band, review map and alarm information, and check the video recording via the APP control platform.
