ND-TI003 Thermal Imaging Sight
Overview

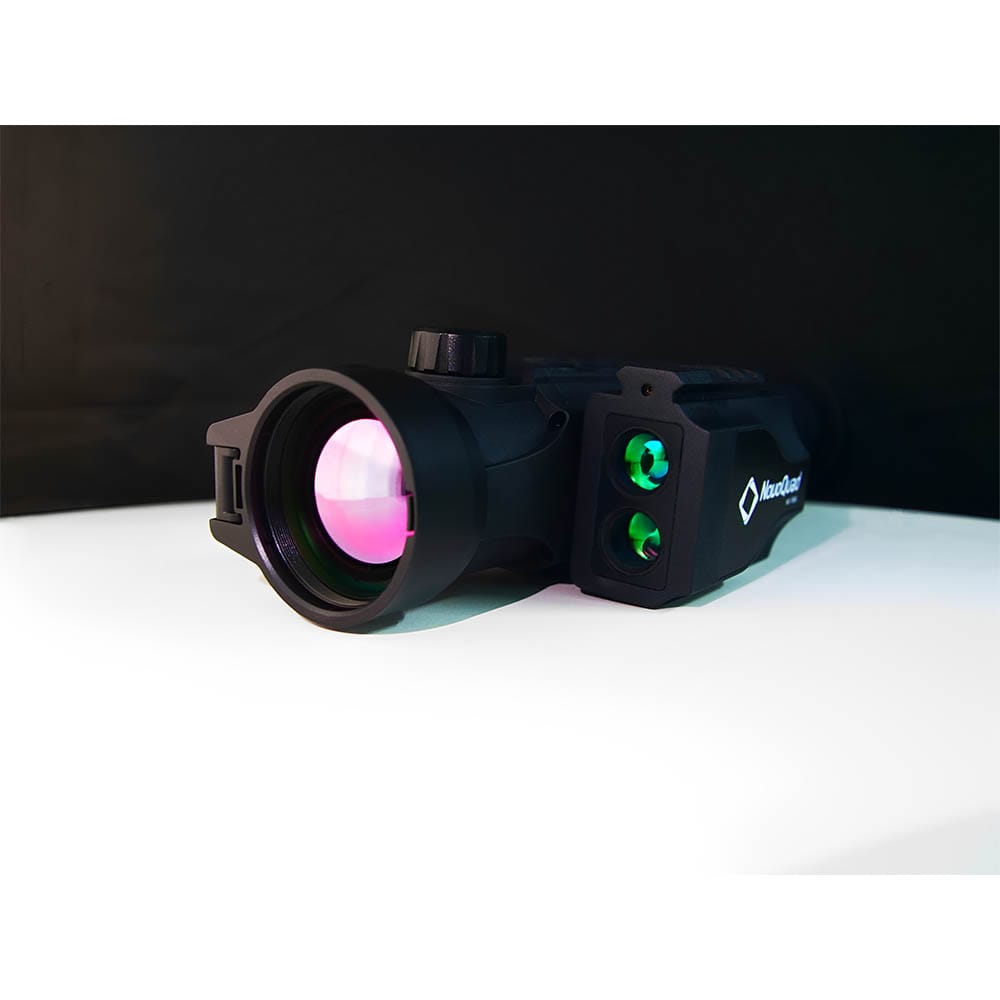

ND-TI003 Thermal Imaging Sight is a compact thermal imaging scope developed for long-time operation under any weather and environmental conditions. It is made of high-grade construction materials, making it lightweight, but at the same time tough to tolerate high recoil. Powered with 6000mAh battery, the ND-TI003 provides up to 9 hours of continuous operation.
Features
• Laser range finder up to 1800m
• Professional shooting data
• Automatic ballistic calculation
• 6000mAh battery pack lasts up to 9 hours
• Shooting recoil impact up to 10000J
Specifications
| Sensor | Frame rate | 50Hz |
| NETD | ≤30mK | |
| Resolution and pixels | 640 x 512 super sensitive | |
| Pixel size | 12μm | |
| Optical characteristics | Objective lens | f50mm, F1.2 |
| Eye relief | 50mm | |
| Operational characteristics | Dimension | 307 x 90 x 75mm |
| Protection | IP67 (Water resistant) | |
| Operating temperature | – 30°C to +50°C | |
| Weight | 1020g | |
| Rangefinder | Wavelength | 905nm |
| Maximum measuring range | 1400-1800m (under optimal condition) | |
| Range | Detection | 1800-2400m (under optimal condition) |
| Recognition | 700-1200m (under optimal condition) |
Scope
• Laser range finder up to 1800m
• Professional shooting data
• Automatic ballistic calculation
• 6000mAh battery pack lasts up to 9 hours
• Shooting recoil impact test up to 10000J
