ND-BD006 High-End Backpack Anti-Drone System
Overview

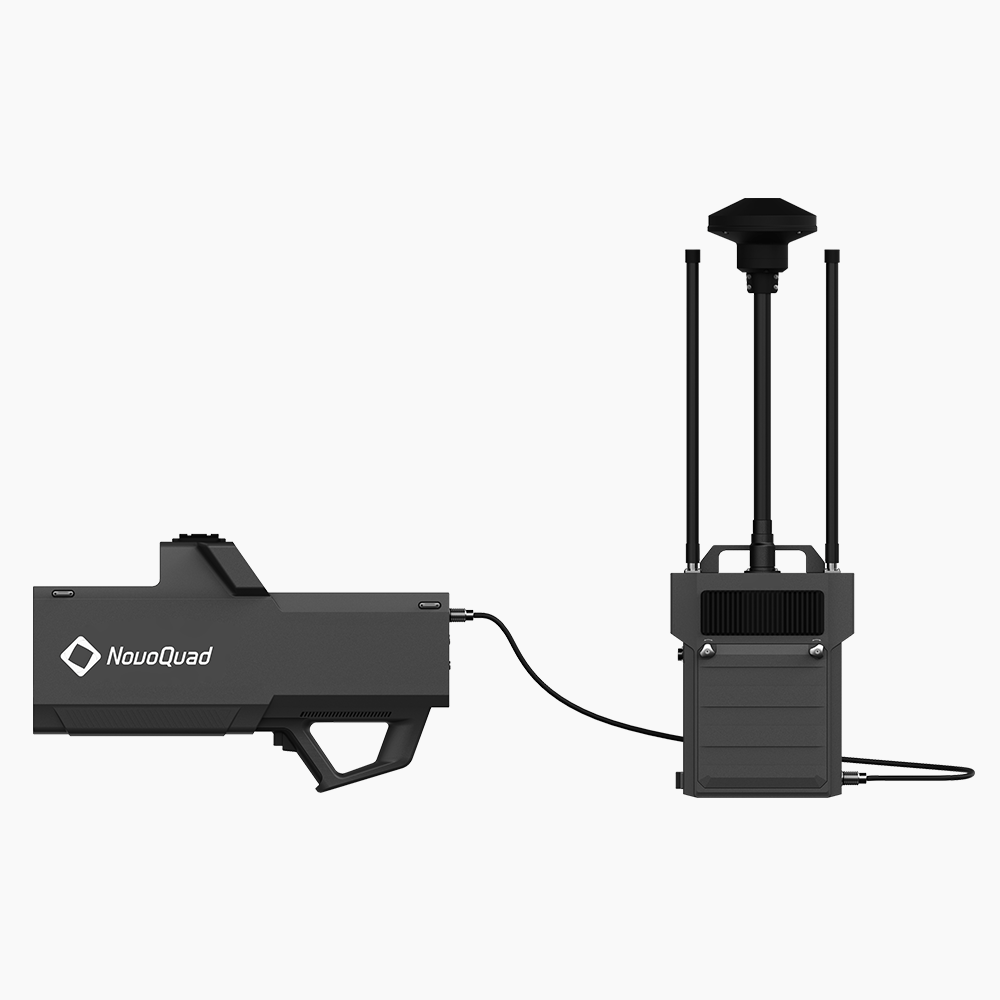

ND-BD006 High-End Backpack Anti-Drone System is an upgraded and comprehensive version of handheld anti-drone system, which integrates detection, countermeasure, navigation spoofing, control and display all in one. It consists of a backpack part and a handheld part to detect and interfere with drones in all frequency bands from 300MHz to 6GHz. The backpack part enables omnidirectional detection and spoofing coverage, while the handheld part adopts directional interference high-gain antennas.
ND-BD006 is small in size, light in weight and has good maneuverability. It achieves a low false alarm rate for drone detection, which can effectively ensure the low-altitude protection in various scenarios.
Features
- Full-band detection and precise interference
- AI-based drone signal detection
- Protocol analysis and positioning
- Information visualization
Specifications
| Item | Parameter | |
| Detection | Detection signal type | Drone digital transmission signal, drone remote control signal, Wi-Fi-based drone signal |
| Target drone types | Commercial multi-rotor drones, some unconventional drones, some fixed-wing drones, and some DIY drones | |
| Detection coverage band | 0.3-6GHz | |
| Radio detection distance | 3km (open environment) | |
| Time to discover drone | ≤3s | |
| Alarm mode | Sound prompt, indicator light on or flashing | |
| Spoofing | Frequency band | GPS L1, BDS B1, GLONASS L1, Galileo E1 and other commonly used satellite navigation frequency bands |
| Frequency range | 1575.42±1.023MHz / 1561.098±2.046MHz / 1602±4.17MHz / 1575.42±1.023MHz | |
| Spoofing distance | ≥2.5km | |
| Spoofing reaction time | ≤3s | |
| Interference | Key jamming frequency bands | Able to generate 5 jamming signals simultaneously, including 902-928MHz, 1430-1450MHz, 2.4-2.4835GHz, 5.15-5.25GHz, 5.725-5.875GHz |
| Software-definable frequency bands | Software-definable interference channels in the full frequency band from 300MHz to 6GHz | |
| Jamming distance | ≥2.5km (0.1W transmitting power of target drone) | |
| Interference to signal ratio | ≥3:1 | |
| System | Display mode | Built-in screen display |
| Battery life | Continuous working time: ≥1 hour | |
| Standby time: ≥24 hours | ||
| Dimensions | Backpack part: ≤282 x 114 x 866mm (L x W x H) | |
| Handheld part: ≤615 x 127 x 360mm (L x W x H) | ||
| Weight | Backpack part: ≤7kg; Handheld part: ≤5kg |
