ND-IM006 High-end Wi-Fi Interception System
ND-IM006 High-End Wi-Fi Interception System is the high-end version adopting the most advanced technologies with more powerful performance in intercepting and monitoring network data.
The system consists of 4 main modules:
- Cracking Module (Penetrator)
- Interception Module (Interceptor)
- Localization Module (Air Check)
- Long-term Mobile Operation Carrier
The system has demonstrated powerful functions of intercepting/RF jamming on Wireless Traffic over the Air, intercepting on Wired Traffic in the LAN and as SSL proxy for interception on HTTPS Traffic at both LAN and WLAN.
| Functions | Simultaneous monitoring of Wi-Fi networks | Up to 4 |
| Frequency band | 2.4GHz, 5GHz | |
| Wi-Fi protocol | 802.11a/b/g/n | |
| Wi-Fi security protocols | WEP, WPA-Personal, WPA2-Personal and WPA2-PSK | |
| Jamming of Wi-Fi network | Yes | |
| Interception of HTTPS/SSL sessions | Yes (MITM) | |
| Coverage | Indoor | Up to 50m |
| Outdoor | Up to 100m and more | |
| Extension op. | Long-term mobile operation carrier | Up to 6 hours (depending on circumstances) |
| Internet Content Reconstruction | IMAP, POP3, SMTP | |
| Webmail | Yahoo Mail, Gmail, Windows Live Hotmail, etc | |
| IM or Chat | Facebook Messager (Web), Yahoo Messenger, Gtalk, Yahoo Web Chat, Skype Voice Call Duration Log, etc. | |
| HTTP | Web Link and Content, Reconstruct, Files Upload and Download, Video Streaming (Youtube,etc.) | |
| HTTPS/SSL Interception | HTTPS Decoding and Reconstruction with username and password available (with self-signed certificate or Sub-CA Certificate available by other party) | |
| File Transfer | FTP Upload/Download, P2P File Sharing (BitTorrent, etc) | |
| VoIP | VoIP (SIP with G.711, G.723, G.729 and iLBG Codecs) can be customized and included; this module is optional | |
| Telnet | Support with Play Back | |
| Social Media | Facebook, Twitter, Google+, Linkedin, etc. | |
| Cloud Service | CDR of Dropbox, Evernote, etc. | |
| Geo-location Service | Google location service, GIS data from Facebook | |
| Video | Youtube, etc. |
Wi-Fi & Lawful Interception System
• Scanning for Wi-Fi stations and access points
• Capturing 802.11a, 802.11b, 802.11g and 802.11n WLAN traffic
• WEP or WPA/WPA2 keys specification to decrypt encrypted datas
• Display of detailed per-node and per-channel statistics
• Display of detailed IP connections statistics: IP addresses, ports, sessions, etc.
• Reconstruction of TCP sessions
| • Wi-Fi Interceptor | x 1 |
| • Wi-Fi Cracking | x 1 (or several) |
| • Wireless Adaptors | x 2 |
| • Frontend Surveillance AP | x 2 |
| • Power Adaptor | x 1 |
| • Set of Cables | x 1 |

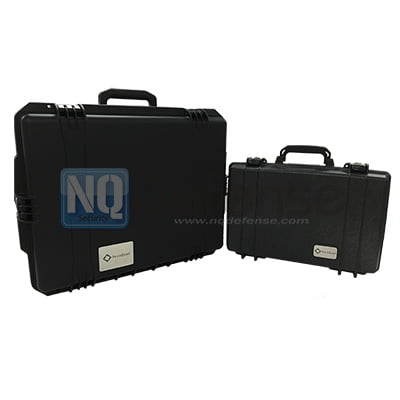

| • Transportation Case | x 1 set |
| • User Manual | x 1 |
