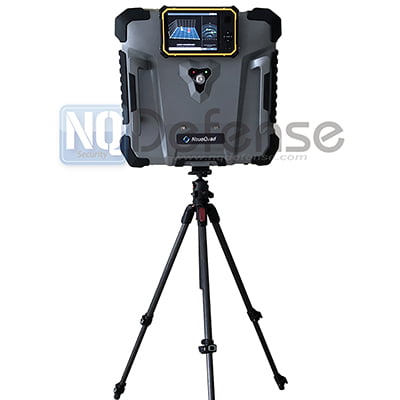

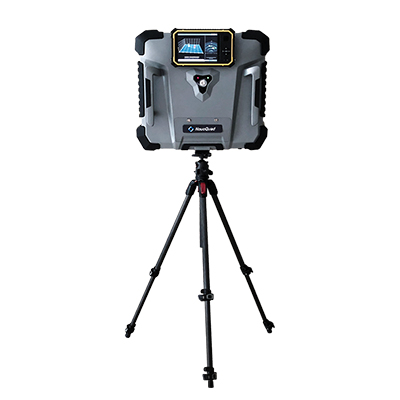

ND-SV007 3D See Through Wall Radar System

ND-SV007 3D See Through Wall Radar System is a durable three-dimensional portable handheld device. It is specifically designed to achieve rapid target research in rescue and protection missions. With the function of 3D positioning of moving and static targets, the system can reliably penetrate common wall materials and rapidly search and locate the targets, and therefore provide efficient aid with more accurate positioning.

System Advantages:

  • Reliable through-wall detection of common wall materials
  • Small, light-weight and portable; easy and quick to operate
  • Accurately position the 3D coordinates of targets, display the number of moving/static targets and movement tracks
  • Simple user interface, providing clear and visual detection results
Contact Us     Become Reseller
Detection mode 3D
Penetrable wall material Non-metallic materials like concrete, mixed brick, floor, wood, and the material with low water content
Start-up time ≤10s
Detection & Display 3D display the distance, direction, height, status of the target, wireless display for remote operation
Numbers of detected targets ≥5
Protection class IP67
Detection distance for static targets ≥20m (penetrate 24cm brick and concrete mixed wall)
Detection distance for moving targets ≥30m (penetrate 24cm brick and concrete mixed wall)
Detection angle ≥±60º
Continuous working time 8h
Dimension 540mm (L) × 520mm (W) ×120mm (D)
Weight 7Kg
Operating temperature -20℃-60℃

See Through Wall Radar System

• Reliable through-wall detection of the common wall materials

• Small, light and portable, quick to operate.

• Accurately position the 3D coordinates of target, and display the number of moving/static targets and movement tracks.

• Simple user interface, providing clear and visual detection results

• Radar Host  x 1
• Lithium Battery  x 1
• Charger  x 1
• Adapter  x 1
• Power Cable  x 1
• User Manual  x 1
