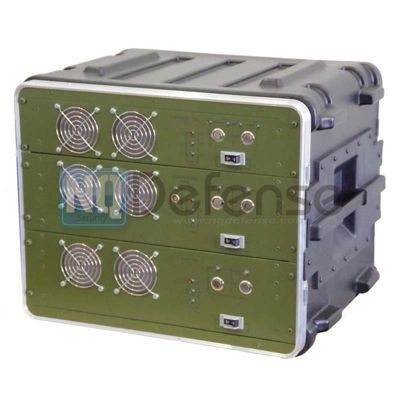

ND-IM008 IMSI 2G/3G/4G Catcher

ND-IM008 IMSI 2G/3G/4G Catcher is designed and developed to track users’ mobile devices across all current networks. The system utilizes a mobile device/network’s IMSI, IMEI and TMSI to track a network device and find the user’s exact location. The system can be used to locate most network connected devices.

The system is customizable multi-channel catcher that works universally across any global network. The Location Triangulation can be achieved between 0.6 square mile radiuses to as accurate as 1-2 meters (depending on situations) based on catcher method.

Contact Us     Become Reseller

Operation supported standards GSM, UMTS, FDD LTE, TDD LTE
Receiver sensitivity -105dBm
Data transmission 3G/Ethernet
Receivers’ dynamic range 75-90dB
Catcher type Direct
Power supply voltage Industrial network with the frequency of 50 Hz 220 V, DC source 12 V
Coverage area >1500m (related to environment)
Collect code speed 1800/min (single station) (maximum)
Catch success rate >95%
System interrupts recovery for catch 30s
Weight 30kg

Cellular Interception System

• Automatic scanning object region frequency point and PCI

• Self-synchronization base station and clock makes high veracity

• 2G/3G/4G full mode all-ready makes all cell phone are no hiding

• No interruption of communications

• IMSI 2G/3G/4G Catcher Module  x 1
• Antenna  x 1 (or several)
• User Manual  x 1
